Lithium Battery 12V 100Ah LiFePO4 Solar Marine 1KW Power Energy
Storage
We have lithium, batteries, accept customized battery pack, we
can't update all items here. If you want any others, please take it
easy to contact with me and tell me your requirement (the capacity
/ voltage / size / discharge current ) .
Features:
The battery uses imported original big brand ion batteries, with a
small internal resistance, big capacity, cycle times and more, no
memory effect, etc; internal circuit for multiple protection
design, can prevent over charge, over discharge, over current;
production process quality inspection and monitoring the use of
computers to ensure superior battery performance.
Applications:
Golf trolly of 12v 1200w motor , Wireless camera, surveillance
cameras, wireless infrared detector, car LCD TV, portable DVD,
personal treatment system, PDA personal data assistant, personal
communications systems, walkie-talkies, digital cameras,
camcorders, video cameras, Bluetooth devices, CD players, MD
players, MP3 players, smart cards, aviation model LED lights and
other fields can be used in 12V power.
How to choose a suitable battery pack?
- battery voltage is the same with the original.
- battery size same with the original. Or similar/smaller.
- battery plugs same with the original (check the plug diagram)
Match the above three conditions, in general, this battery can be
used.
The larger of MAH, the longer use time. Different voltage, battery
size, shape, can be same voltage, because the battery combination
of different ways, the shape is not the same. You can leave a
message about your old battery, please pay attention!!!
SPECIFICATION
| Function Parameter |
| MODEL | HN-LFP 12V 100AHA |
| Norminal Battery Energy | 1260WH |
| Norminal Capacity | 105Ah |
| Norminal Voltage | 12V |
| Internal Resistance | ≤30mΩ |

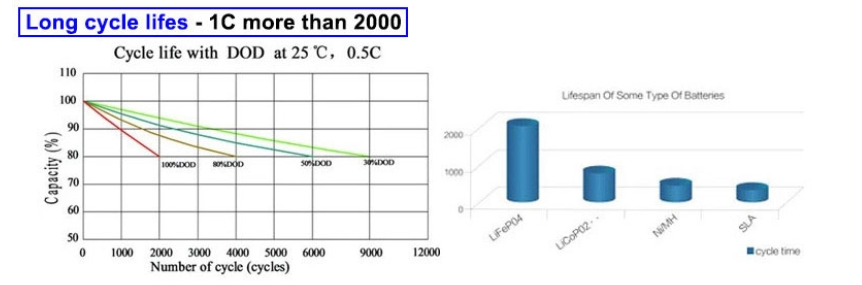

| Cycle Life | 2000 times (Cycle @RT, 1C rate,100%DOD) |
| Months Self Discharge | <3% |
| Charge Data |
| Charge Voltage | 10.8V-14.6V |
| Charge Mode | 0.2C (0.5A) CC/CV |
| Standard Chargeing Current | 20A |
| Charge Cut-off Voltage | 14.6±0.2V |
| Discharge Data |
| Max continuous discharge current | 50A |
| Instant continuous current | 150A / 3S |
| Discharge Cut-off Voltage | 10.8V |
| Mechanical Data |
| Cell & Method | 4S1P-3.2V 105Ah |
| Shell material | Iron / Plastic |
| Dimensions | H270*W156*L348mm |
| Weight (lbs./kg.) | 11Kgs |
| Working Condition |
| Charge Temperature | 0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity |
| Storage Temperature | 0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity |
| Enclosure Protection Level | IP65 |
