    Deep Cycle Lifepo4 EV Battery Pack With Can Bus / Bluetooth Monitoring

    Ask Lasest Price
    Brand Name : HKANON
    Model Number : 72V 50Ah
    Certification : CE RoHS MSDS UN38.3
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000PCS/Month
    Delivery Time : 18 work days
    • Product Details
    • Company Profile

    Deep Cycle Lifepo4 EV Battery Pack With Can Bus / Bluetooth Monitoring

    EV Lithium Li Ion 72V 50Ah LiFePO4 Battery Pack with CANBUS / Bluetooth Monitoring


    Major advantages of Lithium Iron Phosphate:

    Very safe and secure technology (No Thermal Runaway)
    Very low toxicity for environment (use of iron, graphite and phosphate)
    Calendar life > 10 ans
    Cycle life : from 2000 to several thousand (see chart below)
    Operational temperature range :up to 70°C
    Very low internal resistance. Stability or even decline over the cycles.
    Constant power throughout the discharge range
    Ease of recycling


    Life-cycle ofLithium Iron Phosphate technology (LiFePO4)

    Longer battery life, the life expectancy is two times that of lead-acid batteries.
    Rechargeable and no memory effect.
    The weight is more lighter.
    Smaller dimensions and can be customized.
    Safer and more environmentally friendly, No heavy metals and hazardous substances.
    BMS built-in IC chip will prevent battery pack over charge, over discharge, over-current,
    over-heat, short circuit .


    In standard environment, and for 1C cycles, the below life cycle estimation for LFP :

    2000 cycles at 100% DoD
    3000 cycles at 80% DoD
    8000 cycles at 55% DoD


    Specifications72V 50Ah LiFePO4 Battery Pack
    Technical details
    Nominal voltage73.6V
    Nominal capacity(C/5, 23°C)50Ah
    Storage3500Wh Lithium Ion Battery
    Cell Inside3.2V 50Ah LFP Prismatic Lithium Ion Cell
    Cell Combine23S1P-23PCS cells
    Rated Discharge Current100A
    Peak Discharge Current150A
    Chareg Cut-off Voltage84V
    Discharge Cut-off Voltage95V
    Rated Power7400W
    Max Continuous Charge Current0.5C-10A
    Peak Charge Current1C-50A
    Charge Temperature Range0-45C
    Discharge Temperature Range-20-60C
    Pack sizecustomized
    Charging cyclesMore than 2500 times
    ApplicationEV
    Weight(+/- 2%)50KGS

    Switch

    Power Led Show

    CANBUS BMS

    Available

    Charger

    EU UK AU EU /

    5A 6A 8A 10A 20A Charger for reference



    Pictures

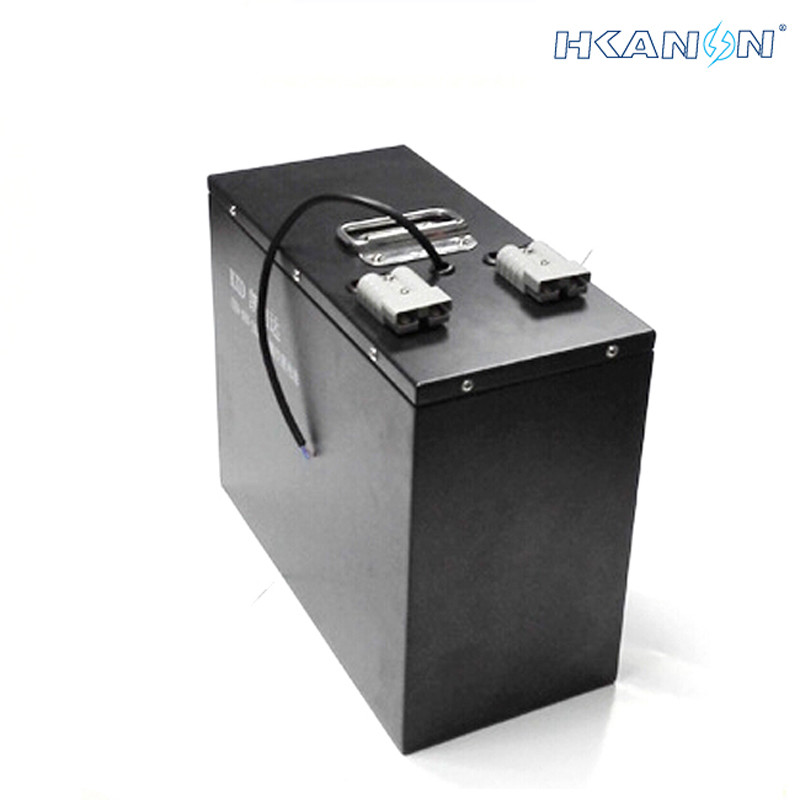

    Deep Cycle Lifepo4 EV Battery Pack With Can Bus / Bluetooth MonitoringDeep Cycle Lifepo4 EV Battery Pack With Can Bus / Bluetooth MonitoringDeep Cycle Lifepo4 EV Battery Pack With Can Bus / Bluetooth MonitoringDeep Cycle Lifepo4 EV Battery Pack With Can Bus / Bluetooth Monitoring

    Other battery packs


    Warnings
    Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.
    Does not use or leave the battery near a heat source as fire or heater.
    Use the battery charger specifically for that purpose when recharging.
    Do not reverse the position and negative terminals.
    Do not connect the battery electrodes to an electrical outlet.
    Do not discard the battery in fire or a heater.
    Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
    Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
    Do not strike, trample or throw the battery.
    Do not directly solder the battery and pierce the battery with a nail or other sharp objects.
