Brand Name : | HKANON |
Model Number : | 24V 20Ah |
Certification : | CE MSDS UN38.3 |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 2PCS/Carton |
Delivery Time : | 5000PCS/Month |

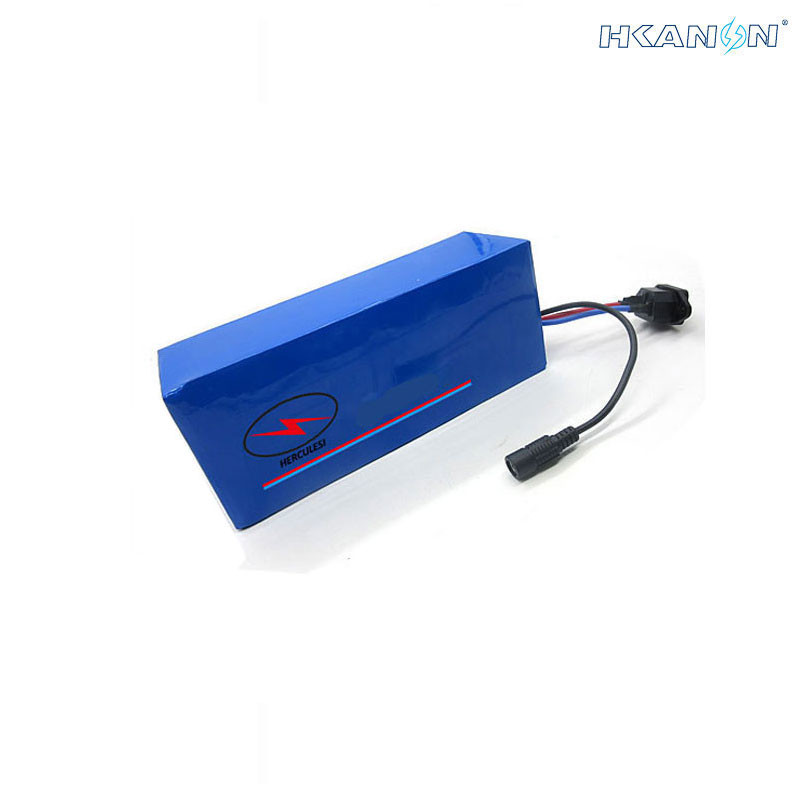

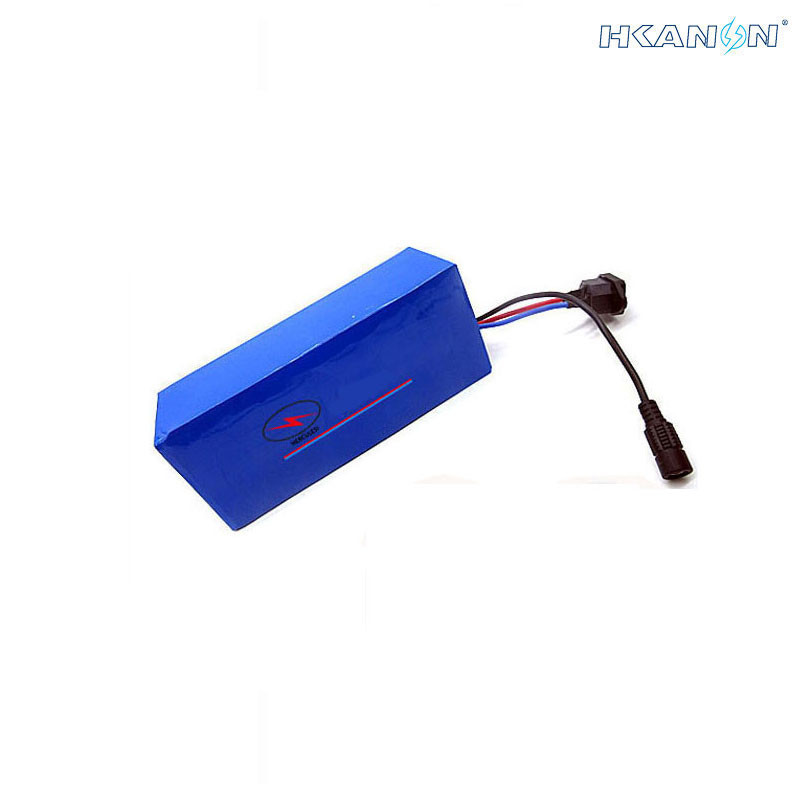

Rechargeable LiFePO4 Battery 24V 20Ah Electric Bike LiFePO4 Battery Pack
Model | lifepo4 battery 24v 20ah |
Nominal Voltage and Rated Capacity | 24Volt 20Ah / Watt Hours: 500Wh |
Configuration | 8 Series 6 Paralles 8S6P-48PCS cells |
Cells | Brand 26650 3.2V 3300mAh Cells |
BMS | 30 Amp max continuous and 50A plusmn peak current(3-5 seconds) |
Fit for Motor | 24V 18W 20W 50W 60W 100W 200W 250W 300W 350W |
Charge Current | 2-5 A |
Charge Cut-off Voltage | 29.2V |
Discharge Cut-off Voltage | 21.6V |

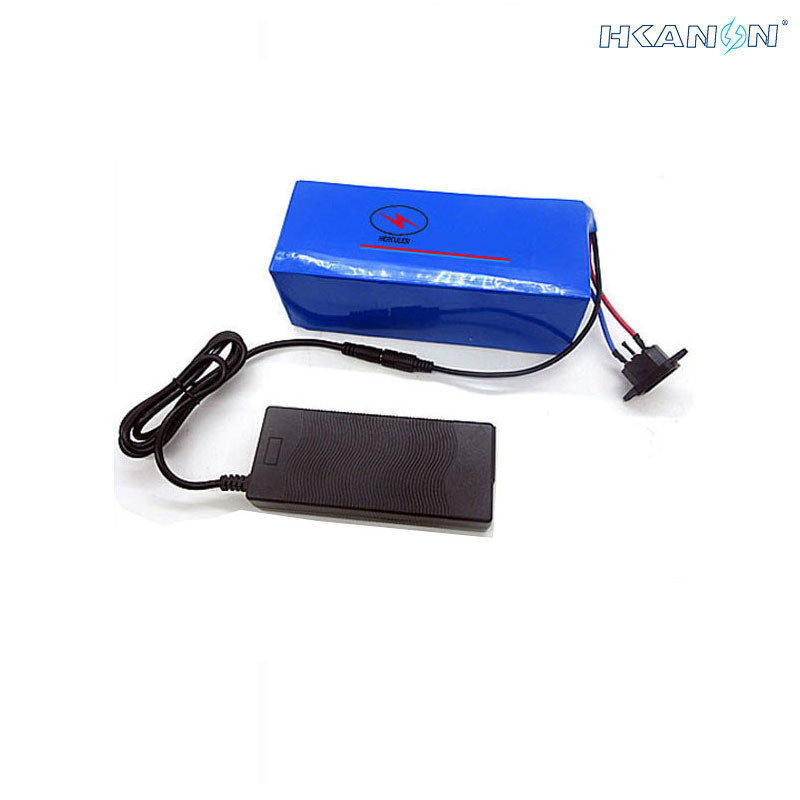

Packing List included: | 1 x Lithium Battery Built-in cells and BMS with 30CM discharge naked cable, or soldered default discharge connector 1 x29.4V 3A Charger With AC plug |
Size | Can be customized |
Case | Plastic Box or Iron Box or PVC+PET can be choosed |

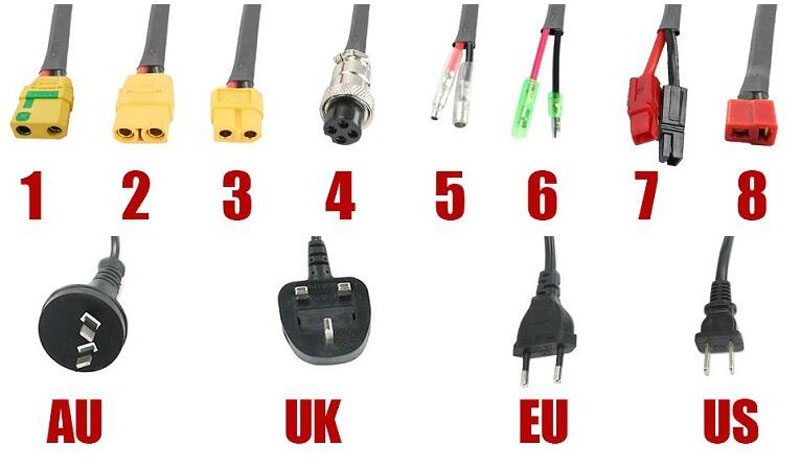

Charger plugs and Discharge connectors optional:
1. Charger Plug: US EU UK AU plugs optional, will provide according
to delivery country if without requested.
2. Discharge Connector: There are 8 kinds optional as below
picture, will provide naked cable or soldered with default
connector if without requested.
![]() |
