    6.4V 4.5Ah 6Ah 7Ah Lifepo4 Battery Pack , Li Ion Battery Pack With F2 Terminal

    Ask Lasest Price
    Brand Name : HKANON
    Model Number : 6.4V 7Ah
    Certification : CE RoHS MSDS UN38.3
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10K/Month
    Delivery Time : 8 work days
    • Product Details
    • Company Profile

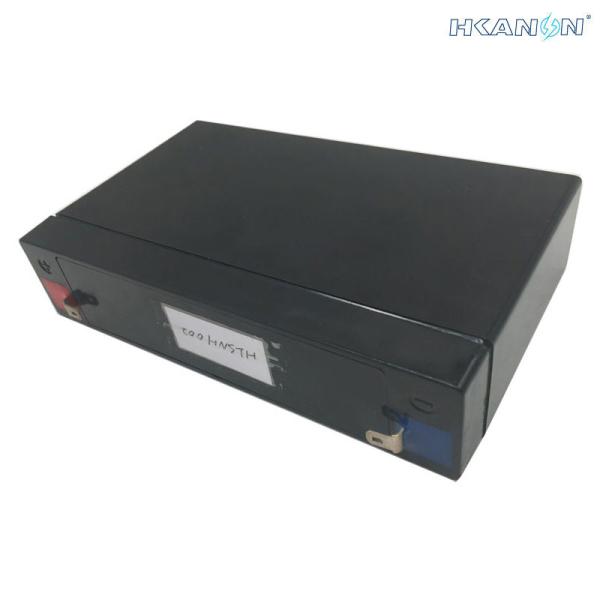

    6.4V 4.5Ah 6Ah 7Ah Lifepo4 Battery Pack , Li Ion Battery Pack With F2 Terminal

    Rechargeable 6.4V 4.5Ah 6Ah 7Ah Lithiun Li Ion LiFePO4 Battery Pack with F2 Terminal


    Advantages

    Long Cycle Life, 2000+ Cycles. 6.4V lithium ion battery pack is constructed from 4PCS High Quality IFR26650 cells in 2S2P.

    High Capacity: 6.4V 7000mAh 44.8Wh. Output voltage: 7.3V-5.4V (Nominal: 6.4V). Output Current: 7A Max. The output voltage is output directly from 2S Li-Ion battery by through the PCM, so the output voltage is not constant.

    Appearance shape, size of the product is similar to the specifications of traditional lead-acid batteries, so you can be installed directly instead of the customary lead-acid battery.

    Lithium battery have excellent characteristics, for example: large capacity, small volume, light weight, etc. It will bring a very convenient experience to users.

    Package content: 6V LiFePO4 Battery Pack . No battery charger !!!


    Application

    Replace old acid lead battery


    The rules for use of batteries
    Protect from improper handling.
    Do not insert with opposite polarity, follow the signs. If the batteries are inserted in reverse, can cause a short-circuit or charging.
    Prevent short-circuiting. If possitive (+) and negative (-) battery terminals are connected, short-circuiting happens.
    Before installing, clean the terminals of battery and the terminals facilities.
    The LiFePO4 should be always mounted with the terminals facing upwards.
    Do not heat excessively. – batteries operate at temperatures according to the specifications.
    Do not weld the cells.
    Do not disassemble. When open may be contact with different parts of the battery harmful.
    Do not distort. Batteries should not be compressed, punctured or damaged in any way.
    Do not dispose of in fire.
    Do not expose to water or excessive humidity.
    Keep away from children. Beyond their reach, it is necessary first of all to keep away batteries which can be swallowed. In addition, children should not be allowed replacement of batteries without adult supervision.
    Do not incase or modify. Any modifying of the battery may cause block safety ventilation mechanism. Any adjustments should consult the dealer.
    Unused batteries should be stored charged and keep them away from metal subjects, which can make short-circuiting the battery. Alreary unpackage units should not be mixed and stored with unused batteries.
    Avoid extreme humidity (over 95%) High temperature or humidity may worsening of battery characteristics and / or corrosion of the surface.
    Do not storage / expose the battery to direct sunlight, in places where they may be exposed to rain, excessive heat such as radiators or heaters.
    Batteries stored in well-ventilated and dry environment, ideally enclosed in a protective case.
    During storage, keep the temperature within the range according to the specifications of a particular article.
    Do not mix with other materials.
    Do not stack cardboard box with batteries. When stacking may cause deformation of the battery in the lower layers and the subsequent flow of electrolyte.
    For additional transportation / handling and packing materials, choose the method of packaging to prevent unintentional electrical contact and corrosion terminals, providing protection against environmental influences and mechanical damage.
    Considerate handling of the boxes. Rough handling can cause a short circuit or damage.
    Ensure proper circulation of stocks, follow FIFO system (First In, First Out).
    Check the voltage of the cell every 2 month. Charge the cell if the voltage dropped to a minimum value of voltage

    Battery operate under the supervision or constant monitoring protection and control systems. Protect against overcharge and deep-discharge.


    Specificationsreplacement LiFePO4 6V 7000mAh Battery
    Nominal voltage6.4V
    Nominal capacity(C/5, 23°C)7000mAh - 7Ah
    CaseABS Case
    Charge Temperature Range0-45C
    Discharge Temperature Range-20-60C
    Pack size151*35*(94*100)mm
    Charging cycles+2000 cycles DOD
    ApplicationReplacement acid lead battery
    TerminalF2
    Storage Port44.8Wh
    Weigh0.54KGS
    Max.Charge (A)3.5A
    Charge Voltage (V)7.3 ± 0.1 V
    Max Discharge Current7A
    Peak Discharge Current20A<3S
    Discharge Cut off Voltage5V
    CombinationIFR26650;2S2P
    HousingIP65
    Quantity of P & S8S Max. Need to maintain for Parallel within 4P
