    30C Peak Current 3.2V 20Ah LiFePO4 Lithium Li Ion Battery

    A123 AMP20 prismatic pouch cell is built to deliver high energy and power density combined. The AMP20 prismatic cell demonstrates industry-leading abuse tolerance coupled with excellent life performance under the most rigorous duty cycles.


    Description
    Product Item:Original LiFePO4 Battery A123 3.2V 20Ah Prismatic Pouch Cell for Customized 12v LiFePO4 Lithium Car Battery Packs


    Main Features:
    20Ah cells delivers high usable energy over a wide state of charge (SOC) range to minimize pack oversizing and offer very low cost per watt-hour.

    With proven performance in the toughest conditions, combining durability, reliability, and safety, the 2600mAh cell offers an excellent combination of price-performance.


    What can LiFePO4 Battery A123 3.2V 20Ah Prismatic Pouch Cell made?
    1) Electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals
    2) Solar hybrid street lighting, UPS power supply, home storage
    3) Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations
    4) Hospitals, finance, telecommunications , system critical backup power systems
    Benefits


    1 years’warranty and maintenance-free if no parasitic drains
    Built-in balanced charging system to ensure long-term consistency of the cell
    Safest perfomence:LiFePO4 battery made(Green energy, no toxic, and environment friendly)


    Applications

    Lithium ion Battery Pack made by 26650 Cell are suitable for foldable mobility scooter, electric bike, mini motorcycles.


    No.ItemsSpecifications
    1Nominal Voltage3.2V
    2Nominal Capacity19.6Ah
    3Standard Charge Current0.2C-0.5C
    4Max. Charge Current5C
    5Continuous Discharge current10C
    6Peak Discharge Current30C
    7Charge Cut-off Voltage3.9V
    8Discharge Cut-off Voltage2.0V
    9

    Inner Resistance

    (Impedance)

    ≤2mΩ
    10Weight496g
    11Dimensions

    Length:227 mm

    Width:160 mm

    Thickness: 7.25 mm

    12Operating Temperature

    Charging: 0°C ~ 45°C

    Discharging: -20°C ~ 60°C

    (The cell surface temperature cannot exceed 70°C)

    13Storage Temperature/Humidity

    Temperature: -10°C ~ +35°C

    Humidity:65%±20%RH

    (optimal store temperature of 23 ± 5°C for long term storage)

    14Cycle Life≥2000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)

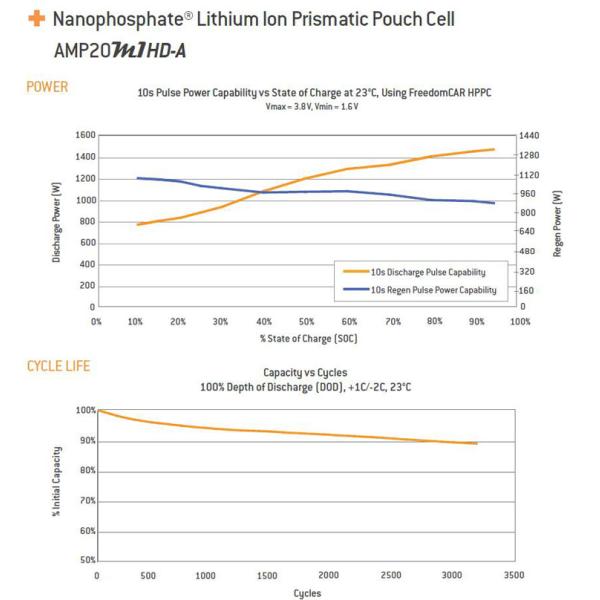

    Pictures for reference

    30C Peak Current 3.2V 20Ah LiFePO4 Lithium Li Ion Battery
